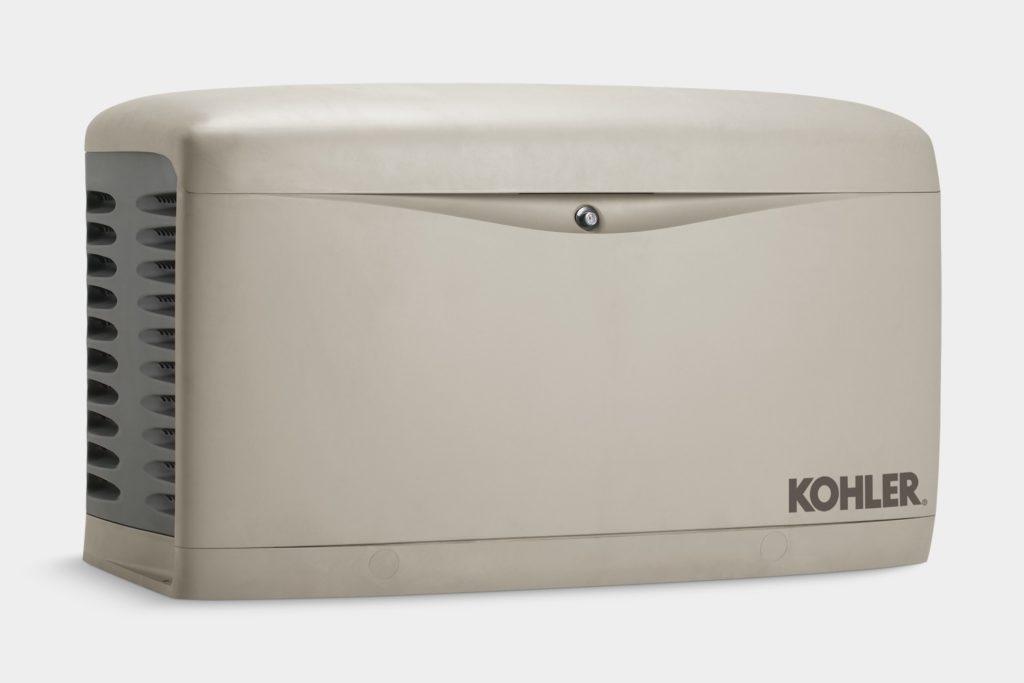

20 kW Generator
20RESC Single Phase or Three Phase, LPG|Natural Gas
| Rated kW LP | 20 kW |
|---|---|
| Rated kW NG | 18 kW |
| Amps LP | 83 amps |
| Amps NG | 75 amps |
| Peak Motor Starting kVA @240 V | 41 kVa |
| Alternator Note | All information shown is for 1 Phase 60 Hz generator with the largest alternator option available. |
| Displacement | 999 cm³ (61 cu. in.) |
| Horsepower | NG 27.1 HP, LP 30.9 HP |
| Enclosure Material | Composite |
| Sound Output During Weekly Exercise | 64 dB(A) |
| Sound Output During Full-speed Operation | 69 dB(A) |
| Response Time | 10 seconds |
| Warranty | Premium five-year limited warranty |
| Country of Origin | US |
| Certifications/Listings | CSA|EPA|UL 2200|cUL |
| Automatic Transfer Switch Included | No |
| Remote Monitoring Available | Yes |
| Off Grid / Utility Backup | Utility Backup |
| Weight | 535 lbs. (243 kg) |
| Alternator Type | 2-Pole, Rotating Field |
| Fuel Consumption on NG at 50% load? | 161 cfh |
| Fuel Consumption on LP at 50% load? | 82 cfh |
| Controller | RDC2 Digital Controller |
| Cylinder Arrangement | V-2 |
| Dimensions | 1216 mm x 655 mm x 733 mm (48 in. x 26.2 in. x 29 in.) |
| Engine Manufacturer/Description | KOHLER |
| Engine Model | CH1000 |
| Engine/Alternator RPM | 3600 |
| Fuel Type | LPG|Natural Gas |
| Frequency | 60 Hz|50 Hz |
| Phase | Single Phase or Three Phase |
| Voltage @ 60 Hz | 120/240 |
| Digital Voltage Regulation | ±1.0% |
| Built in Mounting Pad | Yes |
Overview
Our most popular generators for backup power provide award-winning reliability and performance. When you lose power during an outage or storm, a hard-working 14/20 kW KOHLER® generator keeps your appliances working, the heat or AC running and your security system on. Now also available in 3 phase.*
-
Reliable.Every KOHLER® generator is equipped with a heavy-duty, commercial-grade engine that stands up to extreme weather.
-
Powerful.In just 10 seconds, your KOHLER generator automatically restores power to a 5-ton (60,000 BTU) air conditioner, major appliances and electronics.*
-
Premium warranty.We’ve got you covered with 5-year, 2,000-hour protection, and a corrosion-proof enclosure that’s built to last.
-
Award winner.KOHLER generators have received several awards, including the Most Valuable Product (MVP) Award 2010 by Building Products magazine.
THE POWER YOU NEED
-
PowerBoost™ technology provides power to start large loads such as central air conditioners without dropping power to other appliances
-
Extraordinary peak motor-starting capacity: 20RESC at 41kVA at 240V
-
Premium power quality delivers exceptional digital voltage and frequency regulation along with low levels of harmonic distortion to protect sophisticated electronics
-
Powered by reliable KOHLER Command PRO® engine, designed and tested for tough commercial applications; with hydraulic valve lifters to eliminate need for lengthy break-in periods and expensive valve adjustments; operation speed is 3600 rpm (the standard for air-cooled generators)
-
Compatible with optional OnCue® Plus and OnCue® Plus Wireless Generator Management Systems, and Programmable Interface Module (PIM)
-
Also compatible with Load Control Module (LCM) or Load Shed kit with single-phase generators only
THE CONVENIENCES YOU EXPECT
-
RDC2 controller designed for today’s sophisticated electronics manages both the generator set and Model RXT transfer switch functions
-
Quiet, neighborhood-friendly operation with sound levels similar to a typical central air conditioner
-
Stylish corrosion-proof enclosure impact tested to -30°F
-
Runs on either natural gas or liquid propane (LPG) with simple switching between natural gas and LPG in the field
-
Streamlined installation, simple terminal block for easy field connections. Kohler also offers concrete mounting pads to lower installation costs and time.
*Based on generator and load size.
